FreeSWITCH#

FreeSWITCH is an open-source telecommunications platform for building IP PBXs, voice applications, gateways, and other real-time communication systems. It uses SIP profiles, gateways, and dialplans to control call signaling, media, and routing.

Use FreeSWITCH with DIDWW SIP Trunking to receive calls through a Static Endpoint or Dynamic Registration trunk and place outbound calls through a DIDWW outbound trunk. This guide configures DIDWW connectivity through the external Sofia SIP profile.

This configuration applies to FreeSWITCH 1.10 and 1.11 with the default configuration and mod_sofia. It does not require third-party modules.

Note

FreeSWITCH configuration paths depend on the installation method. Package installations commonly use /etc/freeswitch. Source installations commonly use /usr/local/freeswitch/conf. The examples in this guide use /etc/freeswitch.

1. Configure inbound voice trunk#

Configure an Inbound SIP Trunk in the DIDWW User Panel to send incoming calls from your DIDWW numbers to FreeSWITCH. Select the delivery method that matches your FreeSWITCH deployment.

Before you begin#

An active DIDWW account is required. Sign in to DIDWW or create a DIDWW account.
At least one active DID number with capacity to receive incoming calls is required. If you do not have one, see How to buy numbers.

Step 1: Create New Inbound SIP trunk#

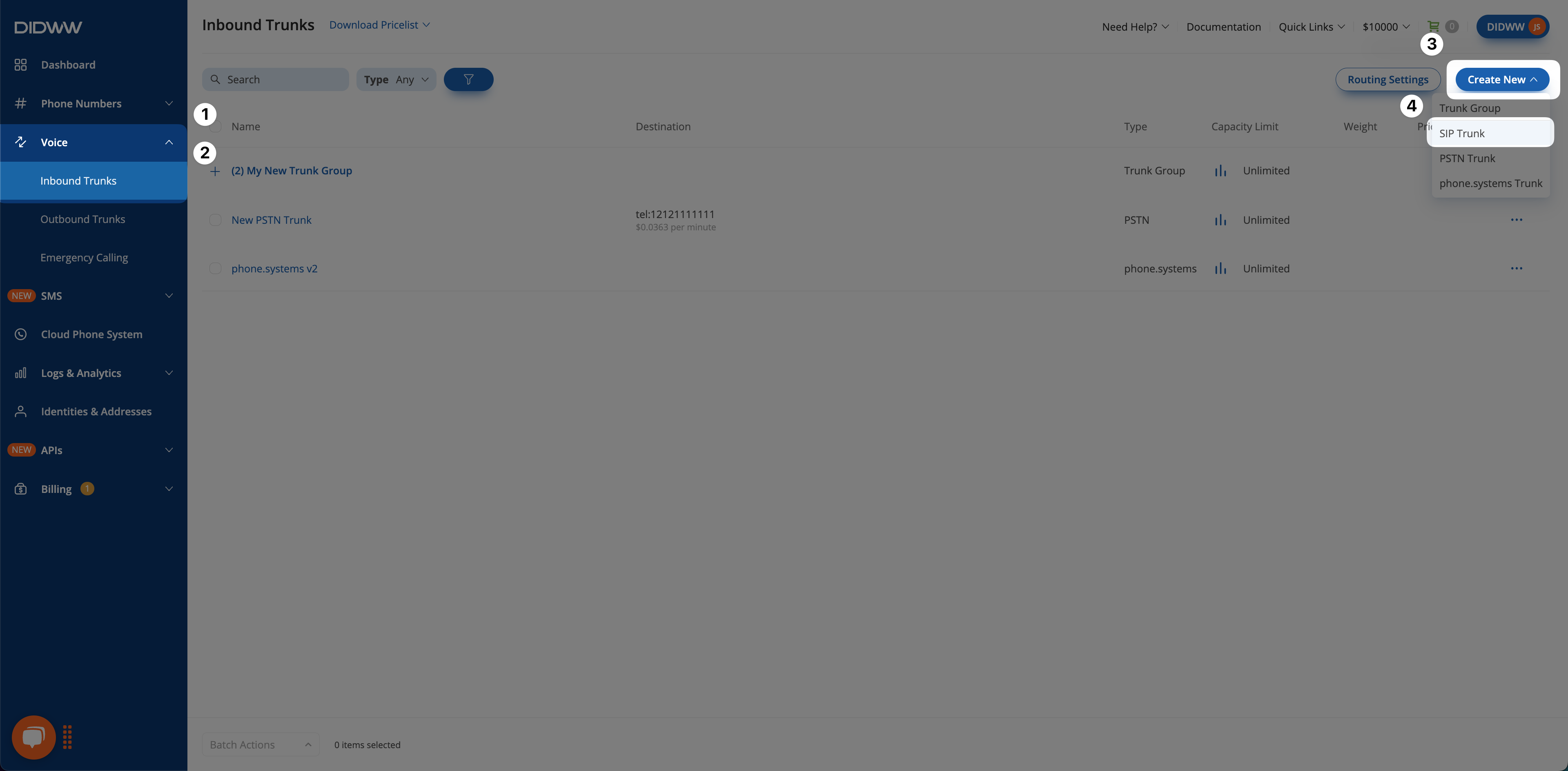

In the DIDWW User Panel, go to Voice > Inbound Trunks.
Click Create New > SIP Trunk.

Step 2: Configure general SIP trunk settings#

In the Create Inbound SIP Trunk form, enter the settings for the selected trunk type.

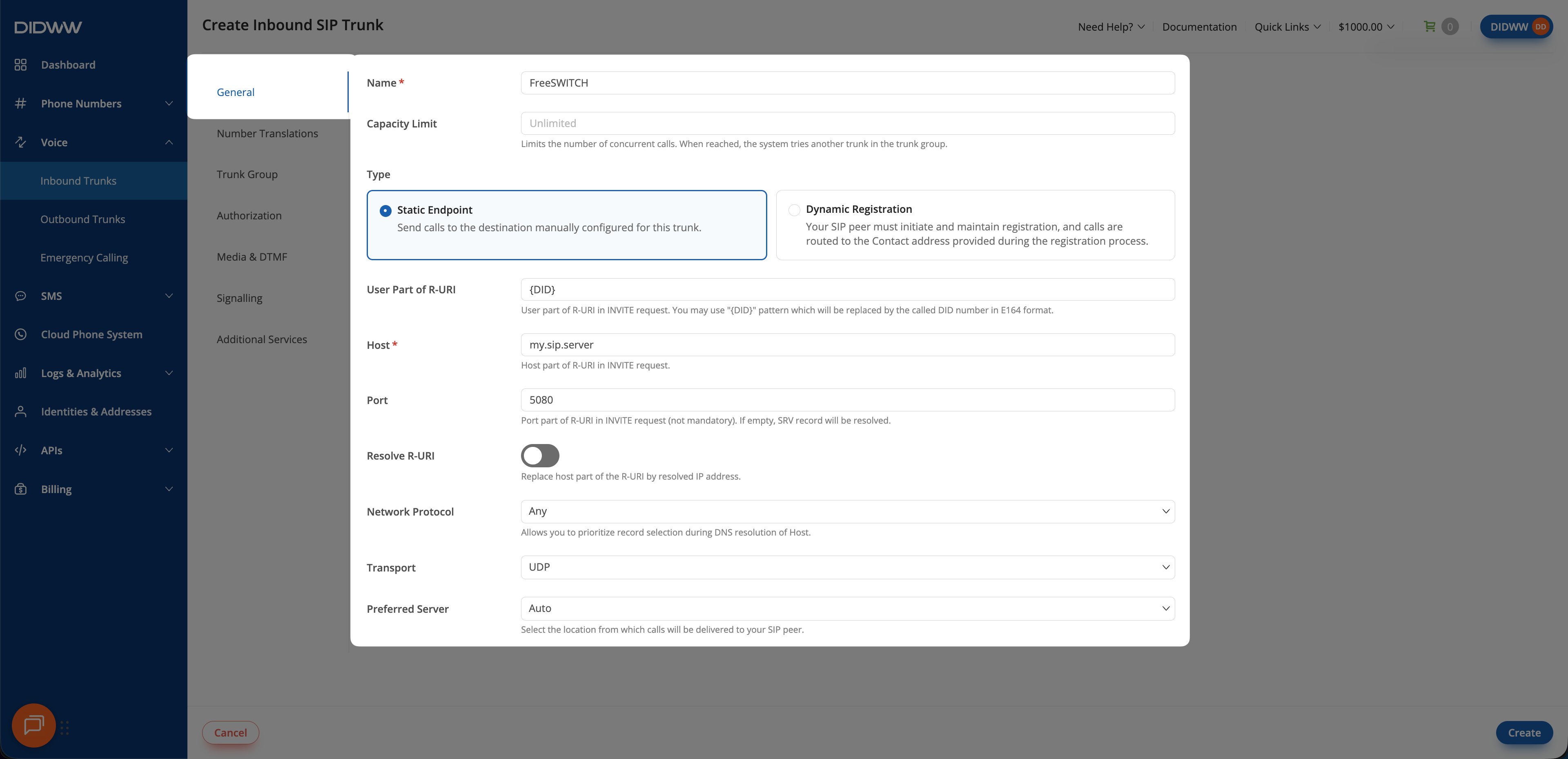

Static Endpoint

Enter a descriptive Name for the trunk (e.g., FreeSWITCH).
Select Static Endpoint as the trunk Type.
In Host, enter the public IP address of the FreeSWITCH server or a domain name that resolves to it.
Select the signaling Transport and enter the corresponding Port used by the external Sofia profile. The default profile uses port 5080 for UDP or TCP and 5081 for TLS. If FreeSWITCH uses a custom listening port, enter that port instead.
Set User Part of R-URI to {DID}. This placeholder inserts the called DID in E.164 format into the user part of the Request-URI.

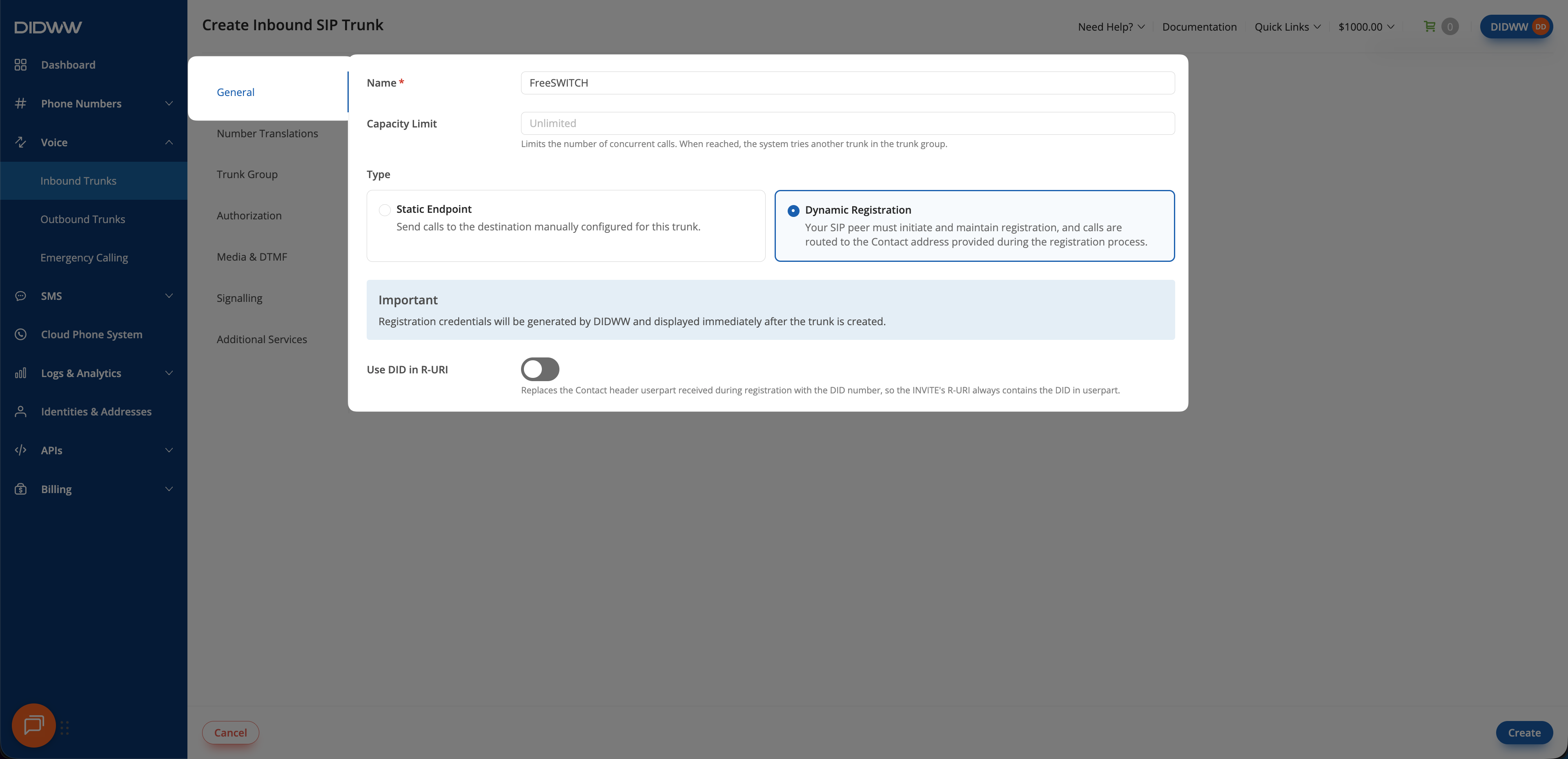

Dynamic Registration

Enter a descriptive Name for the trunk (e.g., FreeSWITCH).
Select Dynamic Registration as the trunk Type.
Configure the remaining media and signaling settings required by your deployment.

Important

The Dynamic Registration setup in this guide sends all incoming calls to one FreeSWITCH destination. It does not configure DID-based routing for Dynamic Registration. The Static Endpoint example in this guide routes calls by DID.

Configuring a Dynamic Registration inbound SIP trunk in the DIDWW User Panel — Dynamic Registration trunk settings.#

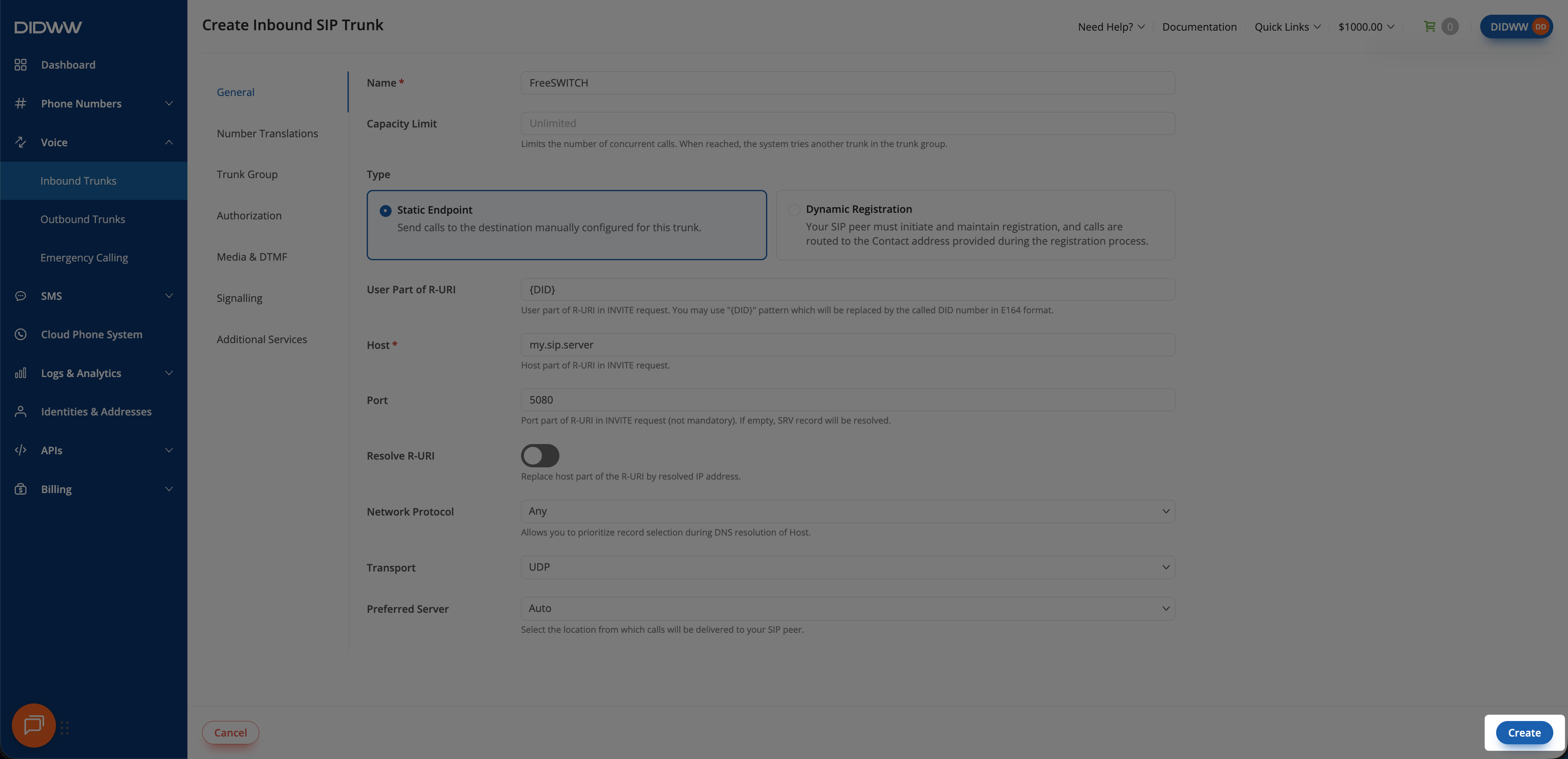

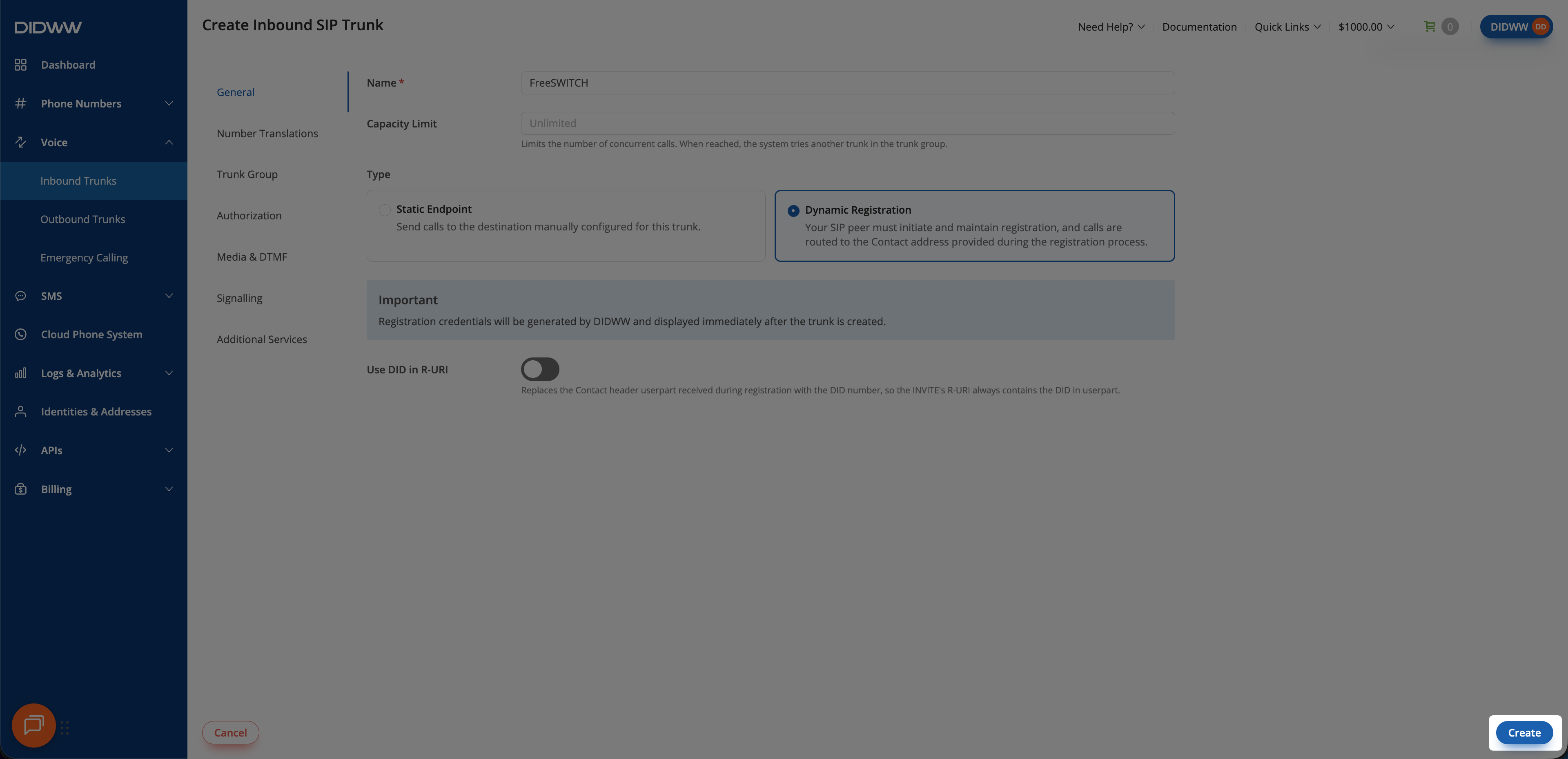

Step 3: Click Create and Save Inbound SIP Trunk Configuration#

When all required fields in the Create Inbound SIP Trunk form are filled, click Create to save the trunk.

Note

For advanced SIP trunk configuration, see Advanced Inbound SIP Trunk documentation.

Static Endpoint

Dynamic Registration

Step 4: Copy Inbound Trunk Credentials (Dynamic Registration Only)#

For a Dynamic Registration trunk, open the created trunk and copy its generated username, password, and registration endpoint. You will use these values when you configure the FreeSWITCH inbound gateway. Static Endpoint trunks do not use registration credentials.

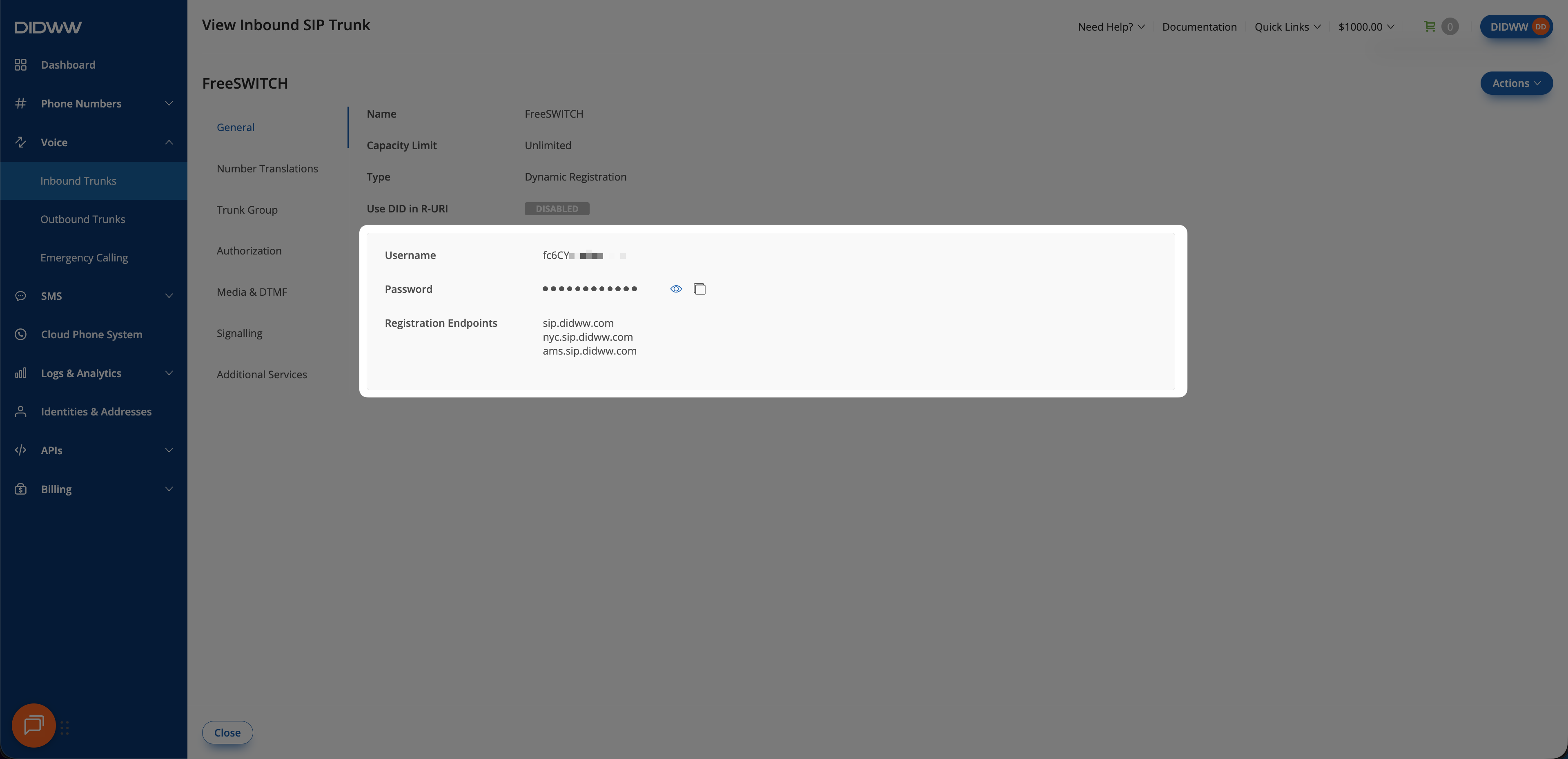

Viewing generated Dynamic Registration credentials and endpoints — Dynamic Registration credentials and endpoints.#

Step 5: Assign inbound SIP trunk to your DID numbers#

After creating the Inbound SIP Trunk for FreeSWITCH, assign it to the DID number(s) that will deliver incoming calls to FreeSWITCH.

In the DIDWW User Panel, go to Phone Numbers > My Numbers.
Select the DID number(s) you want to assign to the inbound SIP trunk.

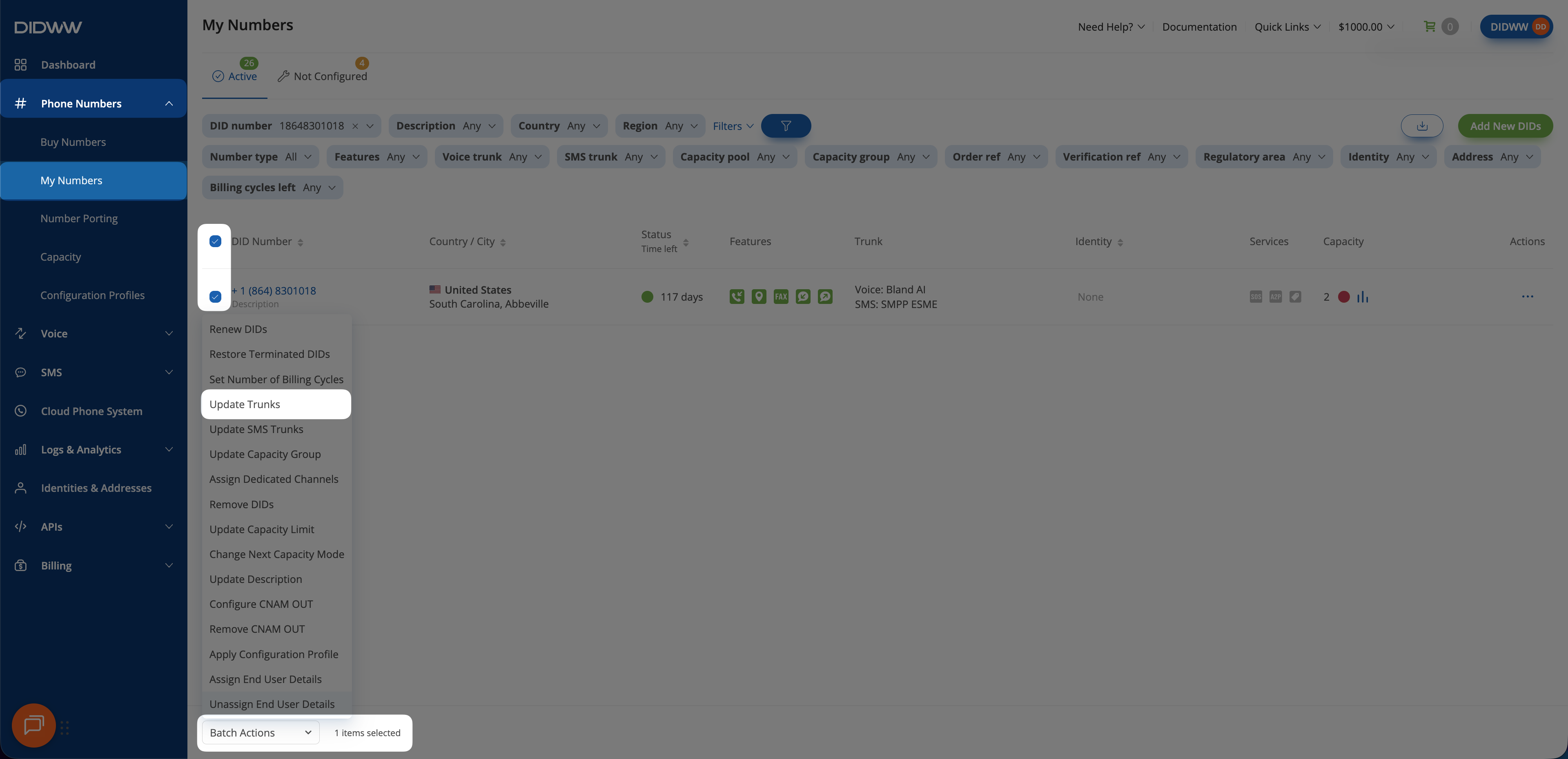

At the bottom of the page, click Batch Actions > Update Trunks.

Selecting DID numbers and Update Trunks from the Batch Actions menu — Selecting **Update Trunks** from the Batch Actions menu.#

From the dropdown menu, choose the FreeSWITCH SIP trunk created in Step 3.
Click Confirm to apply the changes.

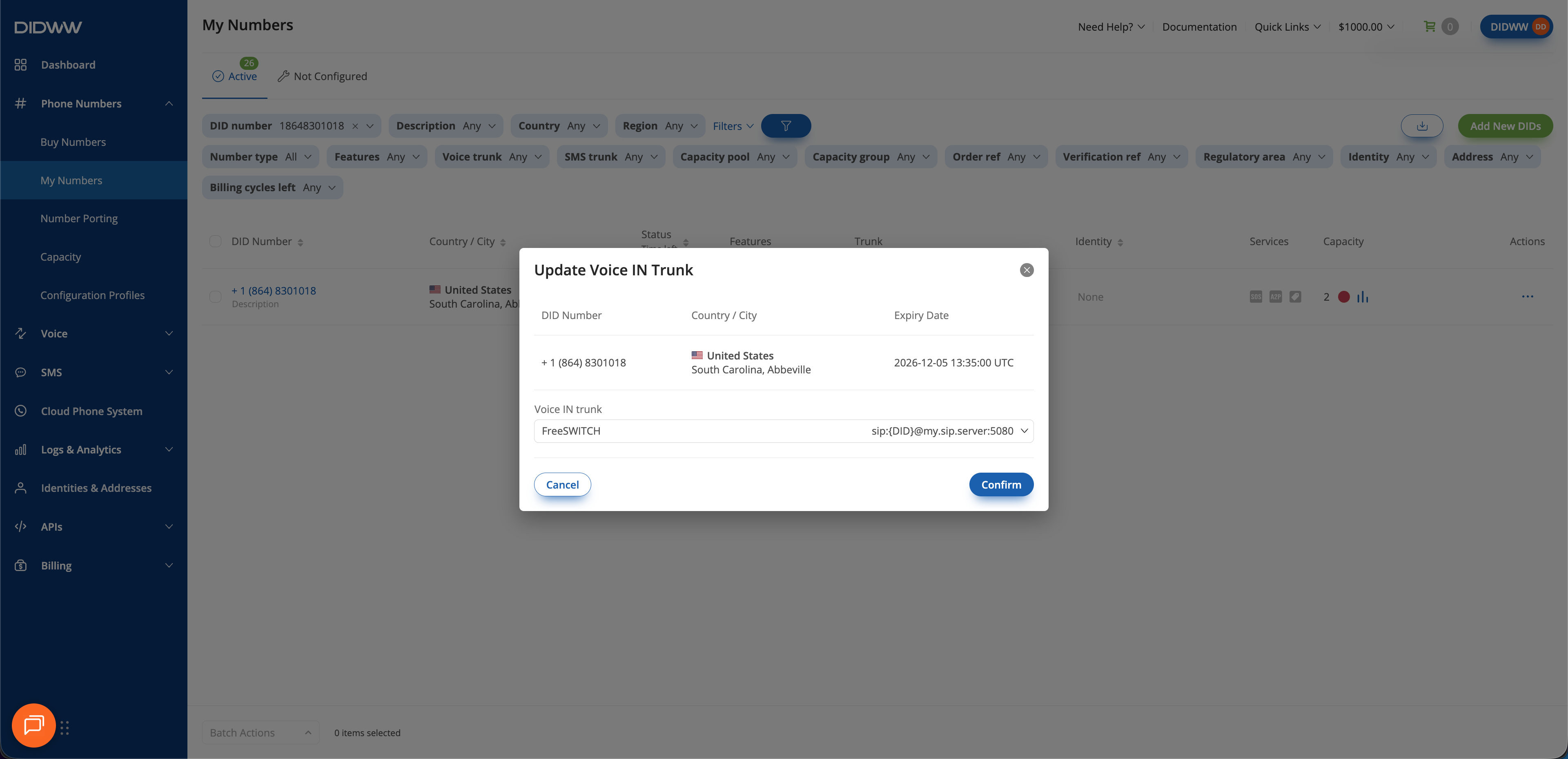

Assigning a SIP trunk to DID numbers — Assigning the newly created SIP trunk to the selected DID(s).#

2. Configure outbound voice trunk#

Configure an Outbound SIP Trunk in the DIDWW User Panel to allow FreeSWITCH to place outbound calls through DIDWW. This trunk provides the SIP credentials and routing settings required for outbound calls to external phone numbers.

Before you begin#

Access to DIDWW Outbound Trunks is required for making outbound calls. See Get access to outbound trunks.

Step 1: Create New Outbound SIP Trunk#

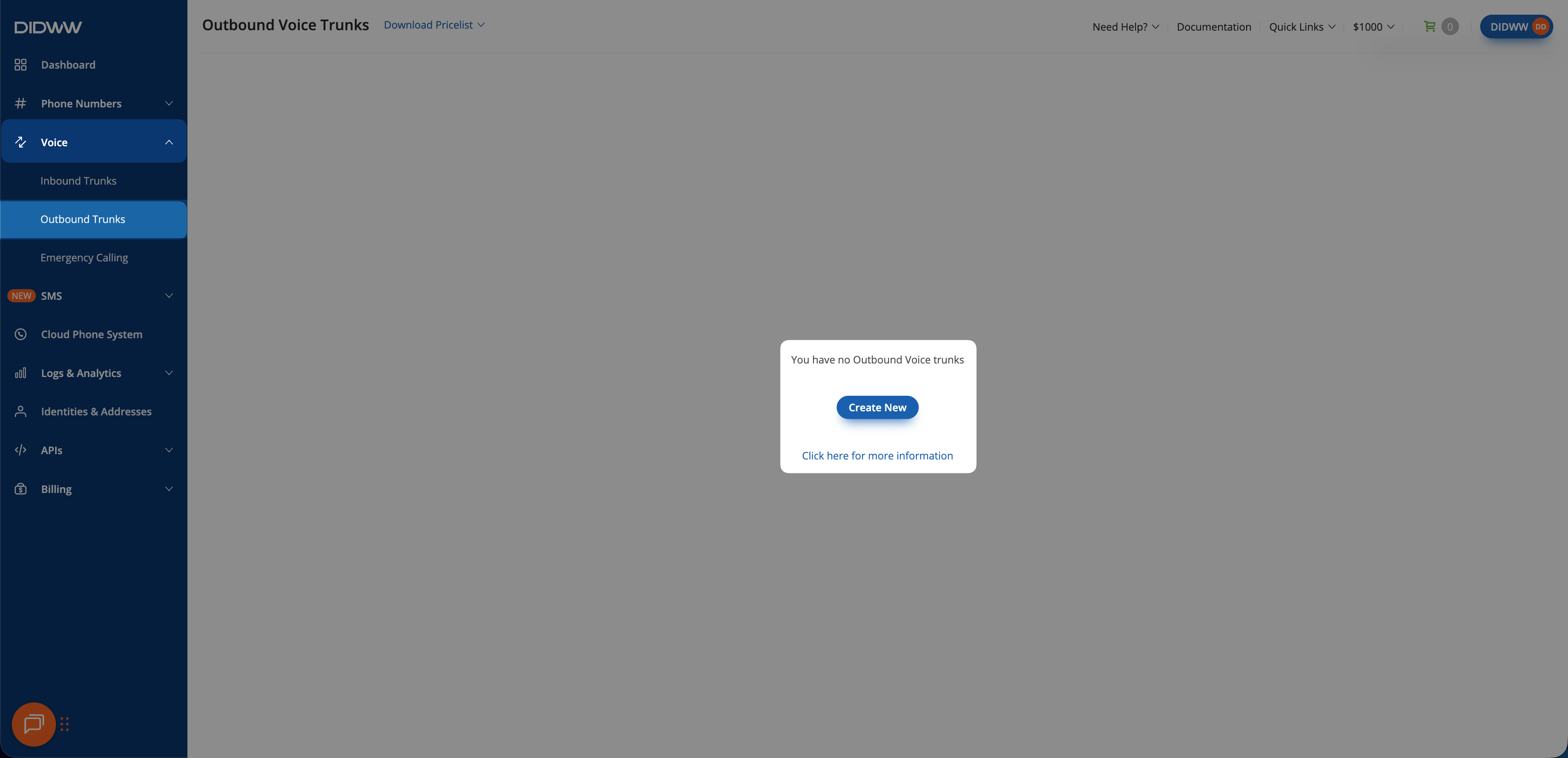

In the DIDWW User Panel, go to Voice > Outbound Trunks.
Click Create New.

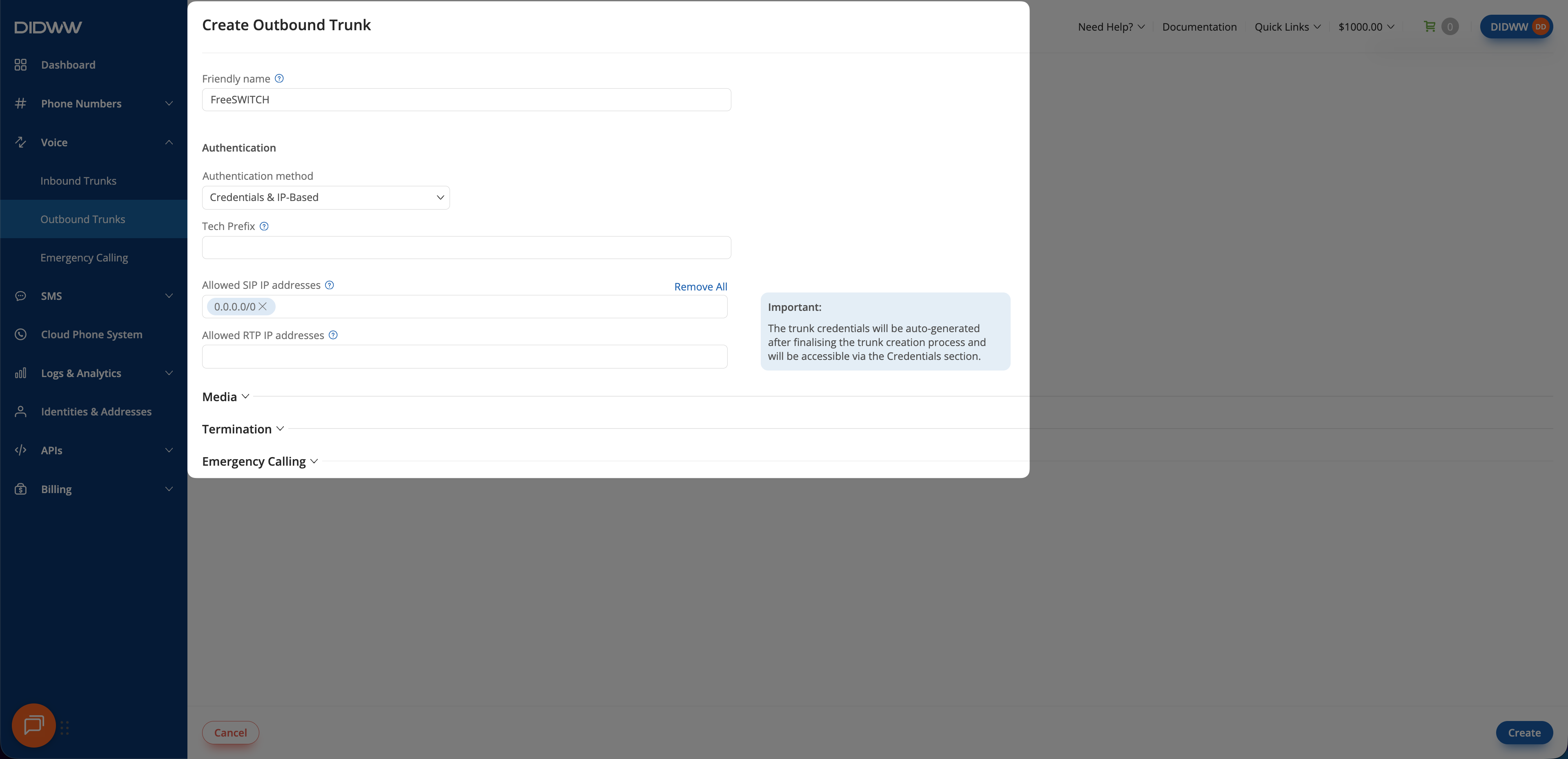

Step 2: Configure Authentication#

Update the Friendly Name (e.g., FreeSWITCH).
Keep the default Credentials & IP-Based authentication method selected. The SIP digest credentials (username and password) will be provided after the trunk is created.
In Allowed SIP IP addresses, enter the public IP address or subnet from which FreeSWITCH will send outbound SIP traffic.
Configure Allowed CLI(s) and the other termination settings required by your deployment.

Note

Make sure you add the correct public IP address or subnet so that outbound calls are accepted by DIDWW.

Configuring credentials and allowed SIP addresses for an outbound trunk — Entering allowed SIP IP addresses for outbound authentication.#

Step 3: Click Create and Save Outbound SIP Trunk Configuration#

When all required fields in the Create Outbound SIP Trunk are filled, click Create to save your outbound SIP trunk.

Note

For advanced outbound SIP trunk configuration, see Outbound SIP Trunk Guide.

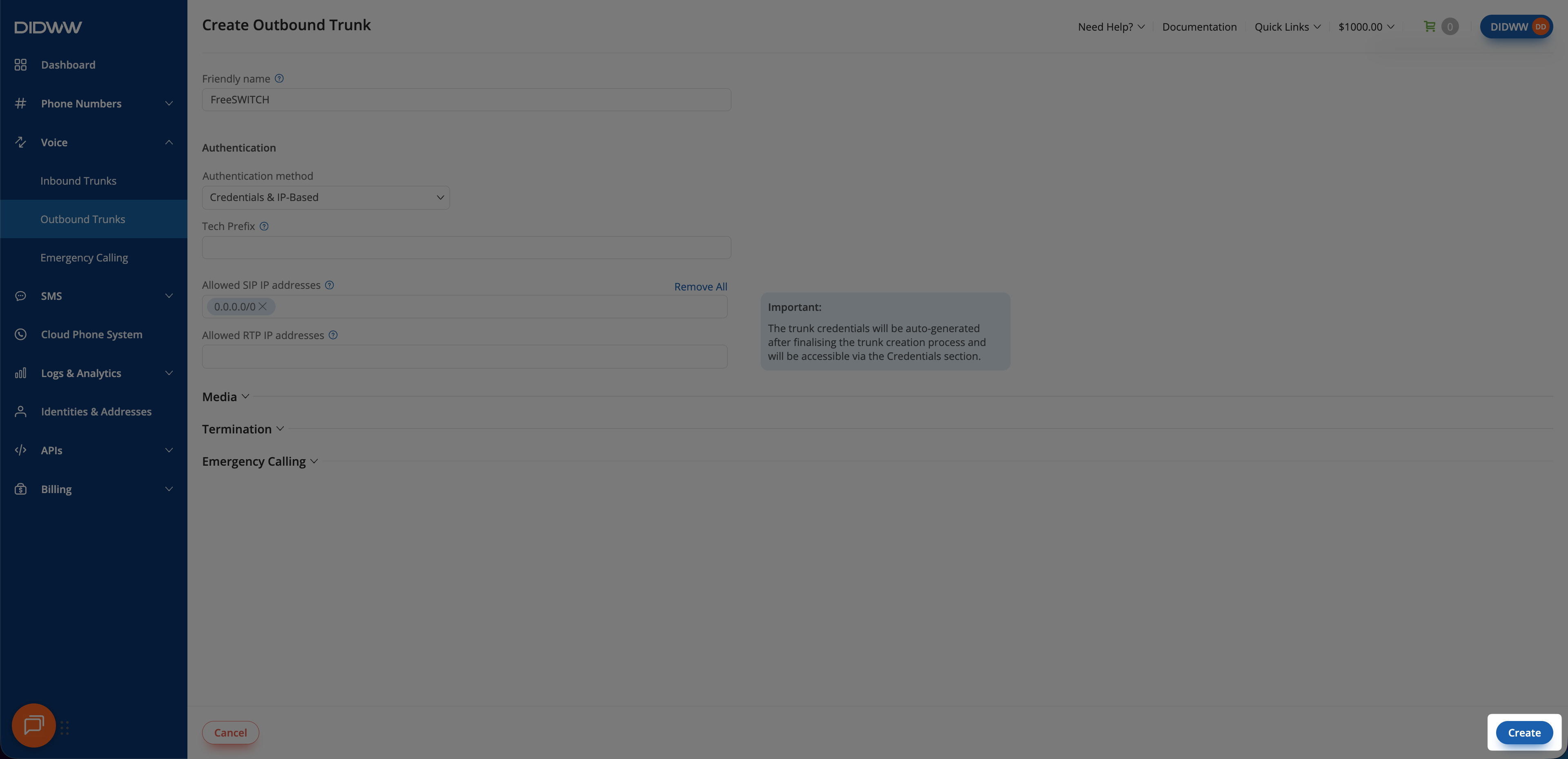

Saving the outbound SIP trunk — Outbound SIP trunk created and ready for use.#

Step 4: View Outbound Trunk Credentials#

After the outbound trunk is created, you can view its credentials by selecting the key icon in the Credentials column on the Outbound Trunks page.

Go to Voice > Outbound Trunks.
Locate your outbound trunk and click the key icon in the Credentials column.

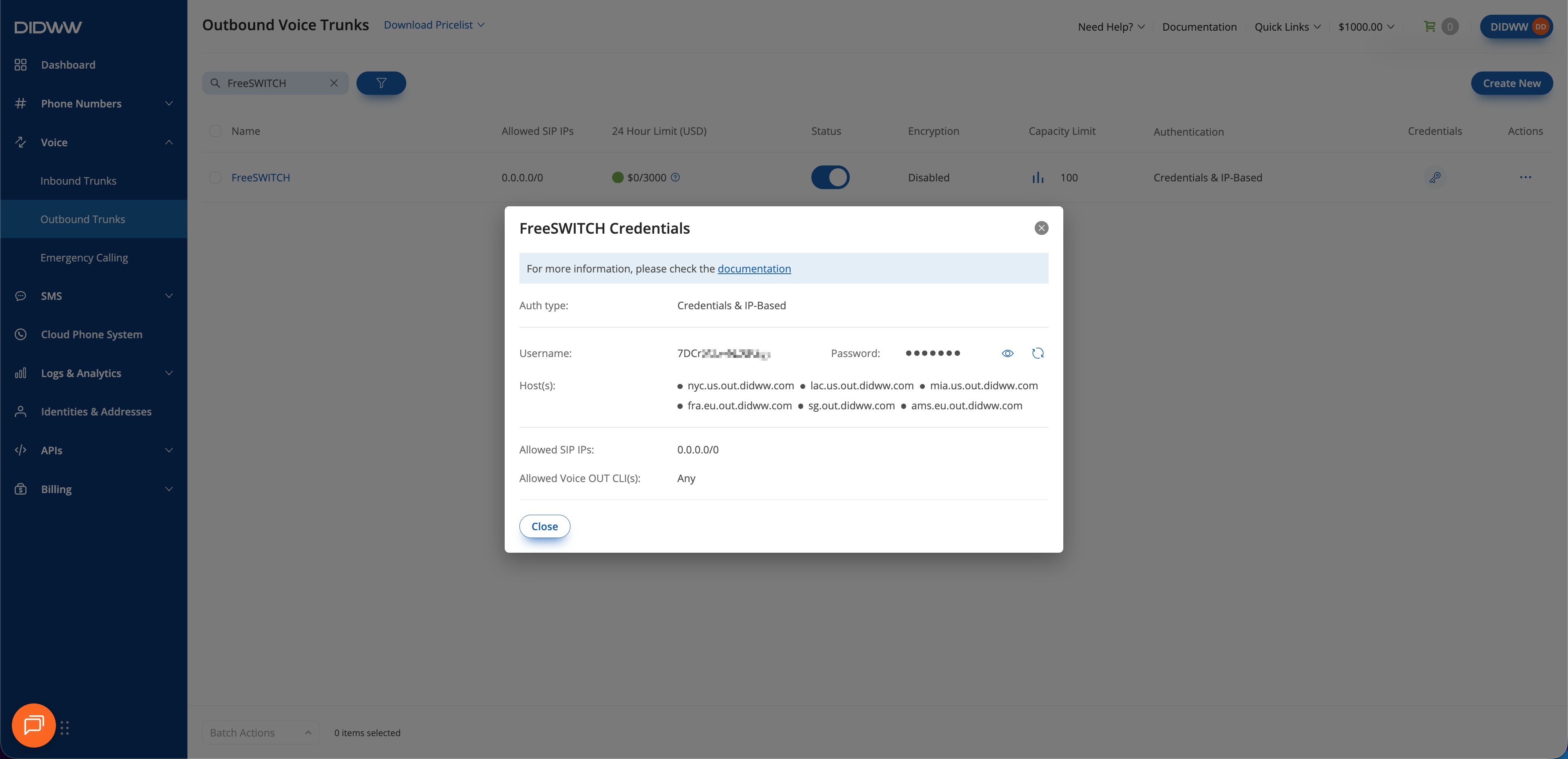

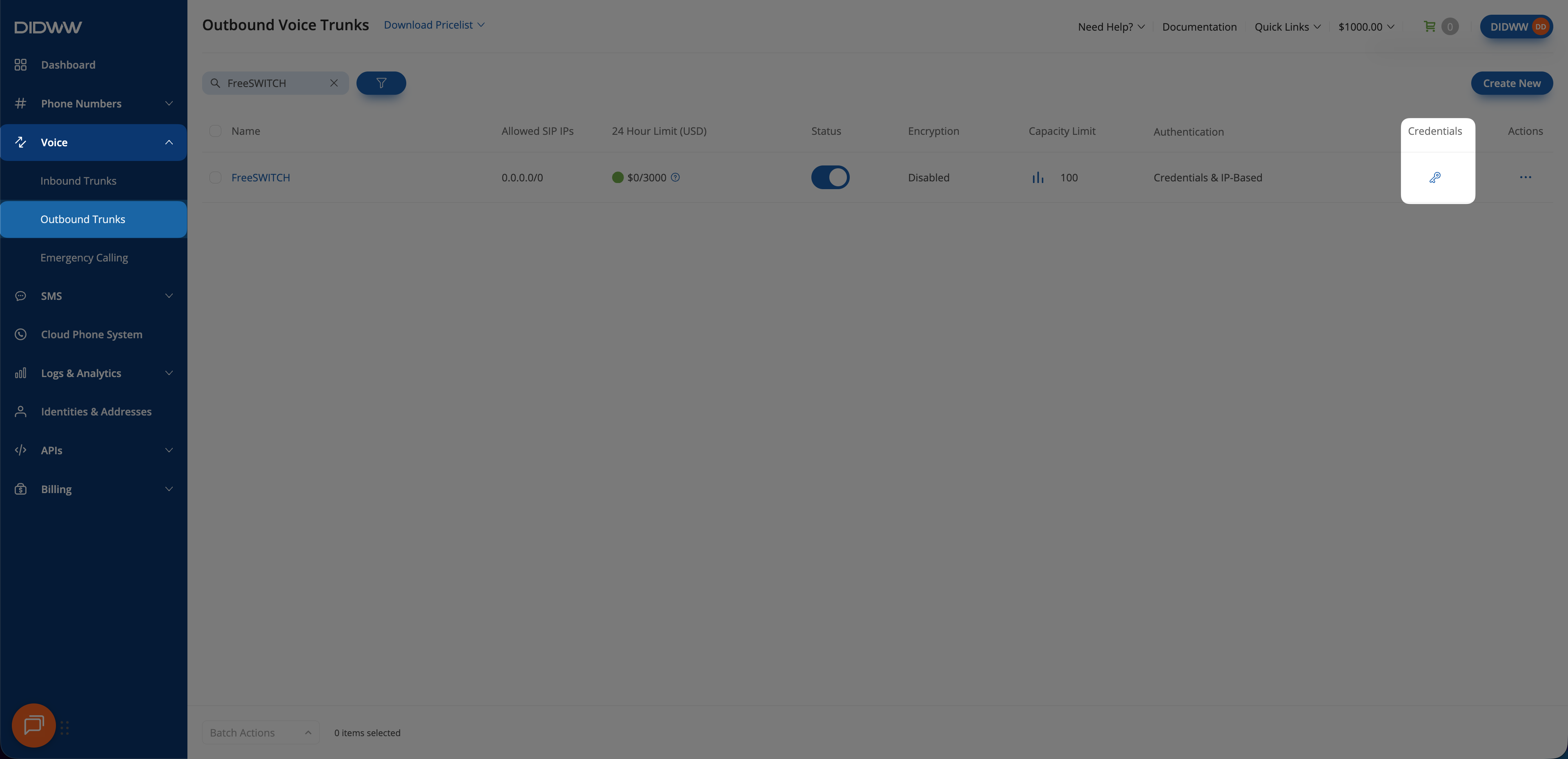

Selecting the credentials icon for the FreeSWITCH outbound trunk — Opening the FreeSWITCH outbound trunk credentials.#

The trunk credentials will appear, showing the Username and Password (click the eye icon to reveal the password).
Copy and securely store these credentials. You will need them when you configure the FreeSWITCH outbound gateway.

Viewing the FreeSWITCH outbound trunk username, password, and hostnames — FreeSWITCH outbound trunk credentials and hostnames.#

3. Configure FreeSWITCH#

Configure the external Sofia profile, DIDWW gateways, and XML dialplan. The examples keep internet-facing trunk traffic separate from authenticated internal users.

Before you begin#

FreeSWITCH 1.10 or 1.11 is required with mod_sofia loaded and the external Sofia profile running.

Note

The examples use /etc/freeswitch as the configuration directory. Adjust the paths if FreeSWITCH uses a different configuration directory. Back up the current configuration before making changes.

Step 1: Configure the Sofia profile and gateways#

Complete the core SIP configuration first. Then add only the optional settings required by your deployment.

1. Core SIP configuration#

Configure the external Sofia profile, DIDWW ACL, and inbound and outbound gateways required for calling through DIDWW.

1.1 Configure the external Sofia profile and transport#

The default external profile loads gateway files from sip_profiles/external. In /etc/freeswitch/sip_profiles/external.xml, confirm or add the following settings inside the profile’s settings element:

<param name="sip-port" value="$${external_sip_port}"/>
<param name="inbound-codec-prefs" value="PCMA,PCMU"/>
<param name="outbound-codec-prefs" value="PCMA,PCMU"/>
<param name="dtmf-type" value="rfc2833"/>
<param name="auth-calls" value="false"/>
<param name="apply-inbound-acl" value="didww:from-didww"/>

The extended ACL value accepts traffic from the didww list and sends it to the from-didww dialplan context. Requests that fail the ACL are rejected.

The examples use G.711 A-law and G.711 µ-law. See the DIDWW codec details for inbound calling and outbound calling before enabling other codecs.

Select the signaling transport used by the corresponding DIDWW trunks. Skip settings that are already present in the external profile.

UDP

Use port 5080. UDP is enabled on the default external profile, so no additional transport settings are required.

TCP

Use port 5080. TCP is enabled on the default external profile, so no additional transport settings are required.

TLS

Use port 5081. In /etc/freeswitch/vars.xml, enable TLS and confirm the external TLS port:

<X-PRE-PROCESS cmd="set" data="external_ssl_enable=true"/>
<X-PRE-PROCESS cmd="set" data="external_tls_port=5081"/>

In the external profile, confirm or add the TLS settings:

<param name="tls" value="$${external_ssl_enable}"/>
<param name="tls-bind-params" value="transport=tls"/>
<param name="tls-sip-port" value="$${external_tls_port}"/>
<param name="tls-cert-dir" value="/etc/freeswitch/tls"/>

Replace /etc/freeswitch/tls if the SIP TLS certificate and trust chain are stored elsewhere. The directory must contain the certificate files required by the external Sofia profile.

For additional Sofia profile settings, see the official FreeSWITCH SIP profiles documentation.

1.2 Configure the DIDWW ACL#

In /etc/freeswitch/autoload_configs/acl.conf.xml, add the following list inside network-lists:

<list name="didww" default="deny">
  <node type="allow" cidr="46.19.208.0/21"/>
  <node type="allow" cidr="185.238.172.0/22"/>
</list>

The list deliberately uses the published DIDWW IPv4 network blocks because apply-inbound-acl applies to the complete external profile. This permits inbound calls and in-dialog SIP requests associated with outbound calls. The ACL controls SIP access only; configure media access separately in the firewall.

Before applying the ACL, verify the current addresses in General SIP Information and SIP Protocol Details. This guide uses IPv4. Add the published IPv6 ranges if your deployment uses IPv6. If the external profile also serves other carriers, include their trusted SIP sources without removing an existing security policy.

1.3 Configure the inbound trunk#

Static Endpoint

No gateway file is required. DIDWW sends calls directly to the external Sofia profile.

The ACL identifies trusted DIDWW traffic and routes it to the from-didww context. The dialplan configured in Step 2 matches the called DID from the Request-URI.

Dynamic Registration

Create /etc/freeswitch/sip_profiles/external/didww-in.xml:

<include>
  <gateway name="didww-in">
    <param name="proxy" value="nyc.sip.didww.com"/>
    <param name="realm" value="sip.didww.com"/>
    <param name="username" value="INBOUND_TRUNK_USERNAME"/>
    <param name="auth-username" value="INBOUND_TRUNK_USERNAME"/>
    <param name="password" value="INBOUND_TRUNK_PASSWORD"/>
    <param name="register" value="true"/>
    <param name="register-transport" value="udp"/>
    <param name="expire-seconds" value="3600"/>
    <param name="retry-seconds" value="30"/>
    <param name="context" value="from-didww"/>
    <param name="extension" value="didww-inbound"/>
  </gateway>
</include>

Replace INBOUND_TRUNK_USERNAME and INBOUND_TRUNK_PASSWORD with the generated trunk credentials.

For TCP, change the registration transport:

<param name="register-transport" value="tcp"/>

For TLS, use the registrar’s TLS port and change the registration transport:

<param name="proxy" value="nyc.sip.didww.com:5061"/>
<param name="register-transport" value="tls"/>

sip.didww.com is the authentication realm. The example uses nyc.sip.didww.com as the registration proxy. To use automatic location selection or another published regional proxy, see SIP Registrars and change the proxy hostname. Keep the port and transport required by the selected signaling transport.

The fixed extension sets the FreeSWITCH dialplan destination to didww-inbound for calls received through this gateway. To route by called DID instead, enable Use DID in R-URI in the DIDWW User Panel and set the gateway extension to auto_to_user. That variation is not used in this guide.

1.4 Configure the outbound trunk#

Create /etc/freeswitch/sip_profiles/external/didww-out.xml:

<include>
  <gateway name="didww-out">
    <param name="proxy" value="nyc.us.out.didww.com"/>
    <param name="realm" value="out.didww.com"/>
    <param name="username" value="OUTBOUND_TRUNK_USERNAME"/>
    <param name="auth-username" value="OUTBOUND_TRUNK_USERNAME"/>
    <param name="password" value="OUTBOUND_TRUNK_PASSWORD"/>
    <param name="register" value="false"/>
    <param name="caller-id-in-from" value="true"/>
    <param name="ping" value="30"/>
  </gateway>
</include>

Replace OUTBOUND_TRUNK_USERNAME and OUTBOUND_TRUNK_PASSWORD with the credentials copied from the DIDWW User Panel.

Use the proxy parameter for the selected signaling transport:

UDP

<param name="proxy" value="sip:nyc.us.out.didww.com:5060;transport=udp"/>

TCP

<param name="proxy" value="sip:nyc.us.out.didww.com:5060;transport=tcp"/>

TLS

<param name="proxy" value="sip:nyc.us.out.didww.com:5061;transport=tls"/>

out.didww.com is the fixed digest authentication realm. The example uses nyc.us.out.didww.com as the call-routing proxy. Select the appropriate regional hostname under Signaling Endpoints and change the proxy hostname. Keep the port and URI transport parameter required by the selected signaling transport.

Important

Keep register set to false. DIDWW authenticates outbound INVITE requests by the allowed source IP address and SIP digest credentials. The outbound trunk does not register to DIDWW.

For additional gateway settings, see the official FreeSWITCH gateways documentation.

2. Optional trunk configuration#

Use only the sections required by your deployment. Configure NAT when FreeSWITCH is behind NAT. Media encryption and T.38 fax are optional.

2.1 Configure NAT and firewall rules#

If FreeSWITCH is behind NAT, set the public signaling and media addresses in /etc/freeswitch/vars.xml:

<X-PRE-PROCESS cmd="set" data="external_sip_ip=203.0.113.10"/>
<X-PRE-PROCESS cmd="set" data="external_rtp_ip=203.0.113.10"/>

Replace 203.0.113.10 with the public IP address and forward the external Sofia signaling port and the configured FreeSWITCH RTP range to the server.

For inbound calls, allow signaling and media from the addresses and ports in General SIP Information. For outbound calls, allow FreeSWITCH to reach the signaling endpoints and exchange media using the addresses and ports in SIP Protocol Details.

This guide assumes that RTP media passes through FreeSWITCH. If you enable bypass media, configure the firewall and NAT rules for direct RTP between DIDWW and the call endpoint.

For details about Sofia NAT settings, see the official SIP profile NAT reference.

2.2 Configure SRTP media encryption#

The FreeSWITCH media-encryption configuration must match the corresponding DIDWW trunk. DIDWW supports SDES, DTLS, and ZRTP for SRTP key negotiation. This guide uses SDES because it is supported by the standard FreeSWITCH Sofia SIP trunk configuration. FreeSWITCH primarily uses DTLS-SRTP for WebRTC, and ZRTP is not covered by this configuration.

The following dialplan action requires SDES-SRTP on an outbound leg:

<action application="set" data="rtp_secure_media_outbound=mandatory:AES_CM_128_HMAC_SHA1_80"/>

Add the action before bridge in Configure outbound routing. When every call on the external profile must use SRTP, you can also add the following profile setting:

<param name="require-secure-rtp" value="true"/>

Select SDES as the SRTP method in the inbound trunk and outbound trunk settings. Use TLS signaling to protect SDES keys carried in SDP.

For FreeSWITCH behavior and supported suites, see the official secure media documentation.

Note

Encryption applies only to the call leg between DIDWW and FreeSWITCH. It is not end-to-end encryption.

2.3 Configure T.38 fax passthrough#

For an inbound DID that supports T.38, add this setting to the external Sofia profile:

<param name="t38-passthru" value="true"/>

The dialplan must bridge the call to a T.38-capable endpoint or application. For T.38 availability and G.711 fax alternatives, see FAX Services. For FreeSWITCH fax behavior, see the official Fax and T.38 documentation.

Step 2: Configure the XML dialplan#

The FreeSWITCH XML dialplan determines how calls are routed. Add rules that send inbound DIDWW calls to a local extension and send outbound calls through the DIDWW gateway.

1. Configure inbound routing#

Create /etc/freeswitch/dialplan/didww-inbound.xml with the configuration for the selected inbound trunk type.

Static Endpoint

Match the DID from the Request-URI and bridge the call to internal user 1001:

<include>
  <context name="from-didww">
    <extension name="didww-inbound">
      <condition field="destination_number" expression="^12025550123$">
        <action application="set" data="hangup_after_bridge=true"/>
        <action application="bridge" data="user/1001@$${domain}"/>
      </condition>
    </extension>
  </context>
</include>

Replace 12025550123 with the assigned DID and 1001 with the internal user, application, or destination that should receive the call.

Dynamic Registration

Match the fixed extension from the didww-in gateway and bridge the call to internal user 1001:

<include>
  <context name="from-didww">
    <extension name="didww-inbound">
      <condition field="destination_number" expression="^didww-inbound$">
        <action application="set" data="hangup_after_bridge=true"/>
        <action application="bridge" data="user/1001@$${domain}"/>
      </condition>
    </extension>
  </context>
</include>

Replace 1001 with the internal user, application, or destination that should receive the call.

2. Configure outbound routing#

Add the following extension to a dialplan context used only by authenticated internal users. A standard FreeSWITCH installation normally assigns these users to the dialplan context named default.

Create /etc/freeswitch/dialplan/default/10_didww_outbound.xml:

<include>
  <extension name="didww-outbound">
    <condition field="destination_number" expression="^(\d{8,15})$">
      <action application="set" data="effective_caller_id_number=12025550123"/>
      <action application="set" data="hangup_after_bridge=true"/>
      <action application="bridge" data="sofia/gateway/didww-out/$1"/>
    </condition>
  </extension>
</include>

Replace 12025550123 with a caller ID allowed by the outbound trunk. Send destination and caller ID numbers in E.164 format. For example, dial 12025550199. See Outbound dialing for the supported number formats.

Warning

Do not place the outbound extension in from-didww or public. Those contexts receive internet-facing traffic and must not provide access to the outbound gateway.

For XML dialplan concepts and syntax, see the official FreeSWITCH XML dialplan documentation.

Step 3: Load and verify the configuration#

Run the following command from the operating-system shell to connect to the FreeSWITCH console:

fs_cli

From the FreeSWITCH console, reload the XML configuration and ACL, then rescan the external profile for gateway changes:

reloadxml
reloadacl
sofia profile external rescan

Changes to profile settings such as the listening port, TLS, or profile ACL may require a profile restart. Run the following command from the FreeSWITCH console:

sofia profile external restart reloadxml

Warning

Restarting a Sofia profile ends active calls on that profile. Perform the restart during a maintenance window.

Use the following commands to confirm that FreeSWITCH loaded the configuration and can communicate with DIDWW:

Check	Command
FreeSWITCH status	`status`
Loaded Sofia profiles	`sofia status`
External profile details	`sofia status profile external`
Inbound gateway registration	`sofia status gateway didww-in`
Outbound gateway	`sofia status gateway didww-out`
Active calls	`show calls`
Active channels	`show channels`
Live SIP trace	`sofia global siptrace on`

The didww-in gateway check applies only to Dynamic Registration. Its state should be REGED before testing inbound calls. The didww-out gateway does not register, so verify that it is loaded and available rather than expecting a registration state.

Place an inbound test call to the DID configured in the inbound dialplan and confirm that the configured internal destination rings. Then place an outbound test call from an authenticated internal user to a valid destination. Confirm two-way audio and DTMF in both directions.

Common issues#

For additional diagnostic procedures, see the official FreeSWITCH troubleshooting toolbox, call setup troubleshooting, and audio troubleshooting.
